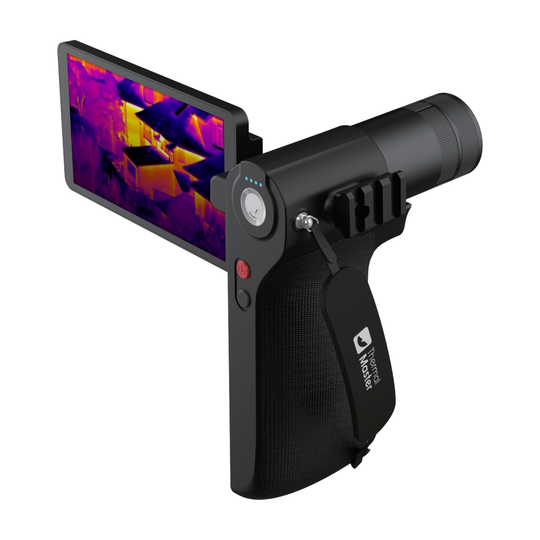

Thermal Master DV2 - main image
Thermal Master DV2 - overview of features
Thermal Master DV2 - 3 core processor
Thermal Master DV2 - aluminium construction
Thermal Master DV2 - 5-inch touchscreen
Thermal Master DV2 - super resolution processor
Thermal Master DV2 - object recognition
Some houses viewed through the DV2 thermal imager
Badgers viewed at a long range through a DV2 night vision camera
A bat in flight imaged through a thermal camera

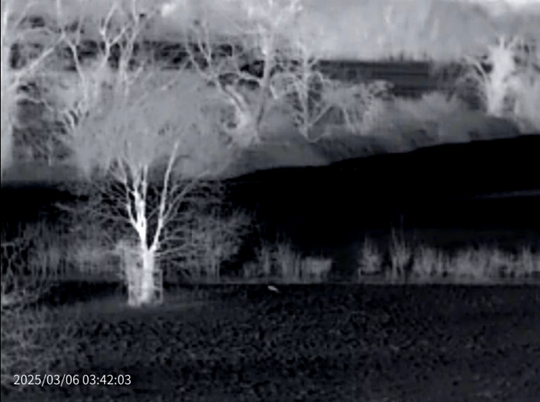

A rabbit imaged through the DV2 thermal camera
Thermal Master DV2 - main image
Thermal Master DV2 - overview of features
Thermal Master DV2 - 3 core processor
Thermal Master DV2 - aluminium construction
Thermal Master DV2 - 5-inch touchscreen
Thermal Master DV2 - super resolution processor
Thermal Master DV2 - object recognition
Some houses viewed through the DV2 thermal imager
Badgers viewed at a long range through a DV2 night vision camera
A bat in flight imaged through a thermal camera
A rabbit imaged through the DV2 thermal camera

Thermal Master DV2 Thermal Camera Touchscreen

  • Exclusive to Nightfox in the UK
  • Intuitive touchscreen display
  • High 512*384 output resolution
  • 20mK high sensitivity, 12µm
  • Up to 8 hours of continuous recording
Pay
Pay
£499.00

Free express delivery (1-3 working days) on orders over £100.
Free economy delivery on all other orders.

A small image of the Thermal Master DV2 Thermal Camera Touchscreen
Thermal Master DV2 Thermal Camera Touchscreen
£499.00

Description

Unlock the power of thermal imaging in the field with the Thermal Master DV2, supplied exclusively by Nightfox in the United Kingdom.

The Thermal Master produces a superb upscaled resolution of 512*384. It achieves this by combining an advanced image processor chip with a VOx 256*192 thermal sensor, giving the crisp image quality of more expensive thermal imaging at a fraction of the price.

With a maximum detection range of 1000m and effective target detection at 300m for humans and 400m for vehicles, this camera is perfect for surveying large areas. The 1-4x digital zoom and minimum focus distance of 10cm enable detailed observations. The camera has a viewing angle (FOV) of 18°.

The DV2 features a vibrant TFT FHD screen (1280x720) and two viewing modes: 'Green Eye' HD mode for detailed observations in cold or dry weather, and 'Orange Eye' Highlight mode for enhanced target detection in hot or wet conditions.

Enjoy 15 hours of video space, thanks to an integrated 32GB memory card and highly efficient .TS video formatting (and .MP4 following WiF-enabled firmware update). The unit can continuously record with the screen folded away, giving around 8 hours of recording on a single charge (or 5-6 hours with the screen on).

With IP54 protection and a long-lasting 5000mAh battery (up to 8 hours), this camera is built for the demands of fieldwork. Weighing just 512g and compactly designed, it's easy to carry on extended surveys. Upgrade your ecological research with our advanced thermal camera – order now and discover new insights in the natural world.

Specification

  • Detection Range (3 pixel): 300m (1.8m object); 250m (1.5m object); 200m (1.2m object); 50m (0.3m object)
  • Focal Length: 10mm high-energy lens of 14.1mm @17μm
  • IR Resolution: 256×192@12μm high sensitivity sensor
  • Super IR Resolution: 512 x 384
  • NETD: ≤20mK @ 25°C, f/0.8
  • AI Shutterless: Supported, zero freezing
  • Razor X: Supported
  • Memory: 32GB (integrated)
  • Insight+: Intelligent exclusion of false targets, highlighting true targets
  • Smart Shield: Smart Sun Damage Prevention
  • Screen: 5 inch touchscreen, 1280 x 720 pixels
  • NTSC Color Space: ≥85%
  • Rangefinder (Optional): 600m Dynamic Ranging, 0.1m Accuracy
  • Battery Life: 6h, 5000mAh Thermal Master rechargeable battery
  • Frame Rate: 50Hz
  • Dual lmage Mode: HD - get more image details, for winter; highlight - targets stand out more, for summer
  • Reticle: 9 professional tactical modes + 5 colors
  • Focusing Mode: Manual focusing supported
  • Built-in: Infrared laser x 1, tactical walking light x 1, battery indicator lights x 4
  • Dedicated Outdoor Palette: White-bird, Black-bird, White-hot, Black-hot, Red-hot, Iron red, Night vision green
  • Application Scenarios: hunting, tactical, outdoor, camping, off-road, rescue etc.
  • FOV:  17.5° x 13.1°
  • Storage: 32G
  • Charging Port: USB Type-C
  • Video Storage: Photo and video saving function
  • WiFi: Supported, wireless image transmission
  • Technology Upgrade: Free online upgrade supported
  • Operating Temperature: -20°C ~ 50°C
  • Storage Temperature: -30°C ~ 70°C

what's included

  • Thermal Master DV2 Camcorder
  • Two Year Nightfox Warranty
  • 32GB Integrated Memory
  • 5000mAh 21700 lithium battery (installed)


Want to learn more about your Nightfox? Access our help page here
Product Help

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q&A

Frequently Asked Questions

Yes. The DV2 saves video footage in 5 minute chunks, using the .TS video file format (similar to MP4). It can record until the unit runs out of battery (up to 8 hours, if not plugged in), or out of space (after about 15 hours).

Thermal sensors are very, very expensive. The Thermal Master DV2 uses a decent 256*192 sensor, but upscales the resolution to 518*384 using an integrated graphics processing unit (GPU). Not only does this save cost, the results are fantastic.

With the screen in use, battery life is 5-6 hours. If you set the camera to record and you fold the screen away, this increases battery life to 8-9 hours. The camera can also be plugged into a USB-C power bank.

Only in some cases. Please drop us an email expressing your interest, and let us know whereabouts in the world you are. Thermal cameras can be subject to strict import and export regulations, and these regulations vary by country.

No, in fact thermal cameras cannot see through glass. However thermal signals can reflect off many surfaces like a mirror, sometimes people see these reflected signals and believe them to be ghosts.
